Fireproof Acoustic Partition Wall with 52 dB Sound Insulation and 6061-T6 Profile for Conference Rooms

Nombre De La Marca:	AE
Número De Modelo:	El AE85
Cuota De Producción:	10 metros cuadrados
Precio:	USD 80-108 Per Square Meter
Condiciones De Pago:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Capacidad De Suministro:	1000 metros cuadrados por mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Guangdong, China

Certificación:

ISO9001 SGS

Modelo:

Divisores de paredes divisorias

Cumplimiento:

Restaurante, sala de reuniones

Material de panel:

Materiales suministrados por el cliente

Altura:

Los hasta 6m

Aislamiento de sonido:

Máximo 52 dB

Espesor de la pared:

los 89cm

Detalles de empaquetado:

capa de espuma y cartón duro con estuche de madera contrachapada o paleta de acero

Resaltar:

Fireproof Acoustic Partition Wall

52 dB Sound Insulation Partition Wall

6061-T6 Profile Partition Wall

Descripción del producto

Conference Room Acoustic Sliding Wall Fireproofing Operable Partition Wall Dividers

Conference Room Folding Movable Partition Acoustic Sliding Walls Fireproofing Operable Partition Dividers

AE Partition has completed projects in the UK, Germany, Belgium, Tatarstan, US and other locations worldwide. Our intelligent solutions for flexible space utilization feature sound insulated or transparent movable walls with flexible partitions that enable efficient space configuration for virtually any requirement.

Advantages

Extensive experience working with demanding clients
Precise delivery time control for all orders
Dedicated design team for new product and solution development
Product performance certified by SGS & ILAC-MRA

Roller Options & Features

Dupont POM roller
304 stainless steel heavy duty roller with safety device & CNC machining
Patented wheel surface and shape design for smooth partition operation

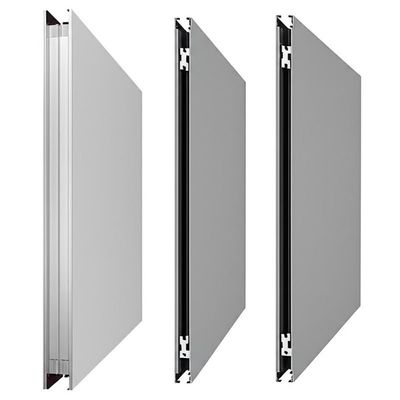

Panel Options & Features

Thickness: 68mm, 89mm & 105mm options
Wide selection of acoustical and decorative finishes
6061-T6 profile with Q235 steel frame for maximum durability
Top & bottom jack lifting mechanism seal with 800N power
Magnetic seal in concave & convex profile with 40N/m magnetic attraction

Specifications

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSIONAL SPACE SOLUTIONS

Series	Element thickness	Element width* (min./max.)	Clear height* (min./max.)	Framed construction	Panel fixing	Element interconnection/design of the vertical profiles
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB): 52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.
