Detalles de los productos

Hogar Productos

Sliding Acoustic Partition Wall System with Glass Finish Customizable Dimensions and OEM & ODM Design

Nombre De La Marca:	AE
Número De Modelo:	AE100
Cuota De Producción:	10 metros cuadrados
Precio:	USD90-135Per Square Meter
Condiciones De Pago:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Capacidad De Suministro:	1000 metros cuadrados por mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Guangdong, China

Certificación:

ISO9001 SGS

Producto:

Sistema de paredes divisorias acústicas

Aplicación:

Hospital, edificio de oficinas

Tablero base:

Materiales suministrados por el cliente

Dimensiones:

Personalización (Alta: hasta 18M, ancho por panel: hasta 1.2M)

Diseño:

OEM y ODM

Aislamiento de sonido:

Max 56db

Detalles de empaquetado:

capa de espuma y cartón duro con estuche de madera contrachapada o paleta de acero

Resaltar:

Glass Finish Sliding Acoustic Partition Wall

Customizable Dimensions Movable Partition Wall

OEM & ODM Design Acoustic Partition System

Descripción del producto

Sliding Acoustic Partition Wall System - 68mm, 89mm, 105mm Thickness With Glass Finish

Sliding Acoustic Partition Wall Systems with Glass Finish for Global Solutions

Maximize your room's potential with our modular movable partitions. Designed for easy assembly and disassembly, these folding partitions are perfect for temporary or permanent space solutions.

Our manually operated partition system is composed of several panels that are easy to move and position by hand. No special tools are required—simply use the operating handle to lock the panels and activate the mechanical seals for effective acoustic insulation.

Key Features and Services

German Partition Technology Global Professional Space Solutions
Site inspections and project consultation
Experience working with demanding clients
Highly competitive pricing
Fast response to construction-related issues
Controlled delivery times for substantial orders
Comprehensive OEM & ODM services tailored to specific requirements
Product specifications and value-engineered alternatives
Submittal drawings provided

Roller Options & Features

Dupont POM rollers for smooth operation
304 stainless steel heavy duty rollers with safety device & CNC machining
Patented wheel surface and shape design for easy movement

Panel Options & Features

Available thicknesses: 68mm, 89mm, and 105mm
Wide variety of acoustical and decorative finishes
6061-T6 profile with Q235 steel frame for superior durability
Top & bottom jack lifting mechanism seal with 800N power
Magnetic seal in concave & convex profile with 40N/m magnetic attraction

Technical Specifications

Series	Element thickness (mm)	Element width* (min./max.)	Clear height* (min./max.)	Framed construction	Panel fixing	Element interconnection
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB): 52/56
Positive and frictional locking: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.

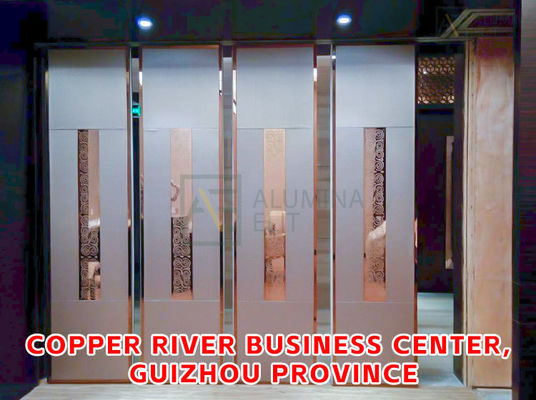

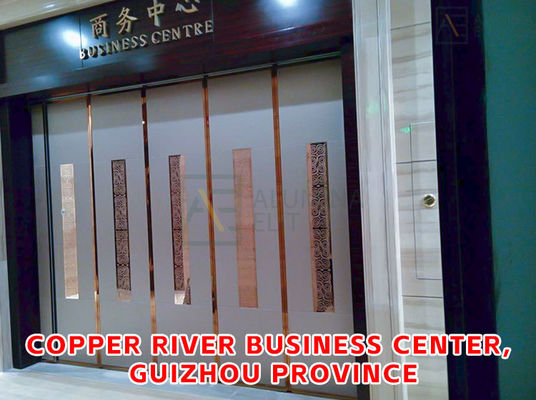

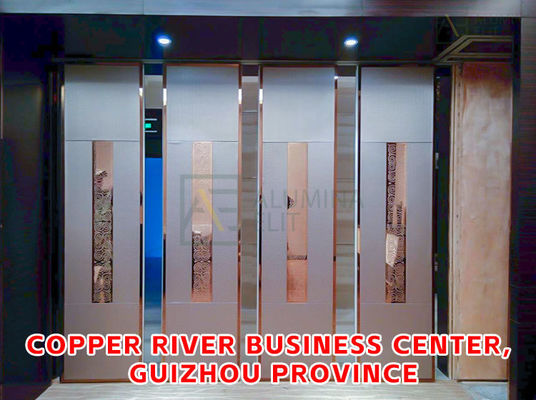

Project Gallery

About Our Company
