Acoustic Partition Wall with 56dB Sound Insulation, Up to 18M Height, and 6061-T6 Profile for Banquet Halls

Nombre De La Marca:	AE
Número De Modelo:	AE100
Cuota De Producción:	10 metros cuadrados
Precio:	USD 80-108 Per Square Meter
Condiciones De Pago:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Capacidad De Suministro:	1000 metros cuadrados por mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Guangdong, China

Certificación:

ISO9001 SGS

Nombre del producto:

Pared divisoria del salón de banquetes

Aplicación:

Las particiones del salón de banquetes

Opción de finalización:

Materiales suministrados por el cliente

Altura:

Hasta 18M

Diseño:

OEM y ODM

Aislamiento de sonido:

Max 56db

Detalles de empaquetado:

capa de espuma y cartón duro con estuche de madera contrachapada o paleta de acero

Resaltar:

56dB Sound Insulation Acoustic Partition Wall

18M Height Operable Partition Wall

6061-T6 Profile Banquet Hall Partition Wall

Descripción del producto

Banquet Hall Removable Operable Acoustic Partition Wall For Hotel

Transform your space effortlessly with our versatile acoustic partition walls. These innovative solutions enable you to convert two rooms into a single expansive area using a simple folding screen. Ideal for environments where floor space is valuable, our partitions allow a large meeting room to be divided into three smaller areas for daily use.

Our acoustic partition walls are designed for ease of use and come with an optional powered operation for added convenience. They provide excellent sound insulation between rooms while allowing quick and smooth reconfiguration of the space. Choose from various finishes including Melamines, Veneers, and writable wall panels to complement your interior decor.

Key Features:

Top hung system without the need for a floor track
Retractable top and bottom seals ensure effortless movement of panels
Concealed or exposed panel edge profiles
Numerous panel stacking options for complete flexibility
Extensive range of surface finishes available
Various levels of sound reduction available
Combines elegance with robust construction
Customization options available

Roller Options:

Dupont POM roller
304 stainless steel heavy duty roller with safety device & CNC machining
Patented wheel surface and shape for easy operation

Panel Options:

Thickness: 68mm, 89mm & 105mm
Wide variety of acoustical and decorative finishes
6061-T6 profile with Q235 steel frame for superior durability
Top & bottom jack lifting mechanism seal with 800N power
Magnetic seal with 40N/m attraction

Technical Specifications

Series	Element Thickness (mm)	Element Width (min/max)	Clear Height (min/max)	Construction	Panel Fixing	Vertical Profile Design
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

* Larger widths possible on application. Provisional details regarding the element heights/widths indicated can only be confirmed following consultation with the Design Department.

Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB): 52/56. Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m.

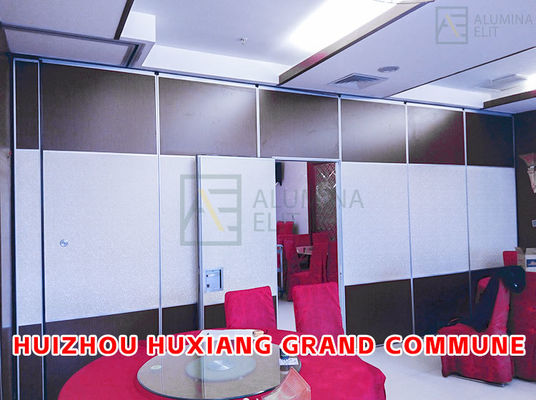

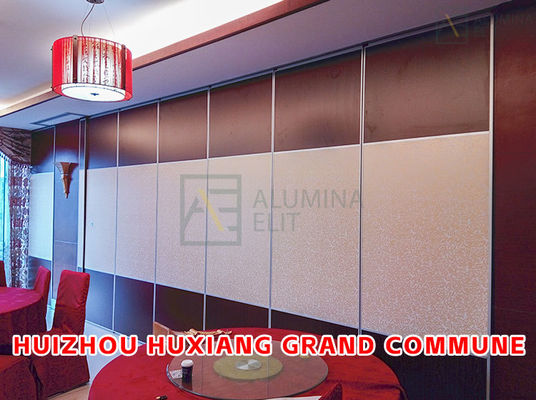

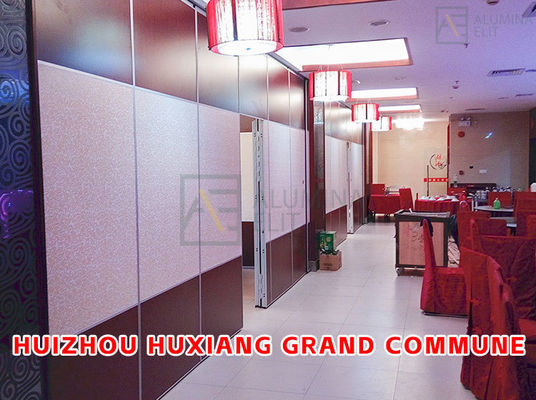

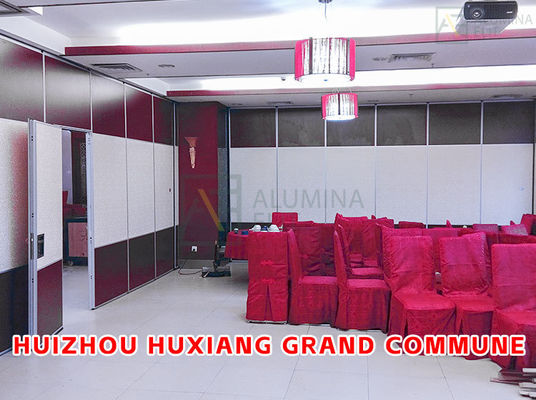

Project Examples

About Our Company
