Fireproof Wooden Acoustic Partition Wall with 6061-T6 Profile and Q235 Steel Frame for Co-Working Spaces

Nombre De La Marca:	AE
Número De Modelo:	AE100
Cuota De Producción:	10 metros cuadrados
Precio:	USD90-135Per Square Meter
Condiciones De Pago:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Capacidad De Suministro:	1000 metros cuadrados por mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Guangdong, China

Certificación:

ISO9001 SGS

Producto:

Pared divisoria acústica

Cumplimiento:

Sala de reuniones, edificio de oficinas

Material de panel:

Tablero laminado de alta presión

Dimensiones:

Personalización (Alta: hasta 18M, ancho por panel: hasta 1.2M)

Diseño:

OEM y ODM

Aislamiento de sonido:

Max 56db

Detalles de empaquetado:

capa de espuma y cartón duro con estuche de madera contrachapada o paleta de acero

Resaltar:

6061-T6 Profile Acoustic Partition Wall

Q235 Steel Frame Movable Partition Wall

304 Stainless Steel Roller Folding Partition Wall

Descripción del producto

Fireproof / Movable Wooden Acoustic Folding Walls For Co-Working Spaces

Fireproof and Movable Wooden Acoustic Partition Wall for Co-working Spaces

Our Wooden Acoustic Folding Movable Partition is designed with fireproof materials, ensuring safety in your commercial space. These operable dividers also offer excellent sound control, making them a practical and protective choice.

AE Partition offers intelligent room management solutions to customers across the globe. We don't just install movable partition wall systems; we meticulously plan and design them to meet the specific needs of each space. Our dedication to quality extends to our post-installation services, which are designed to maintain the durability and functionality of our products over time.

Our Strengths

Effective OEM&ODM service
Your inquiry related to our products or prices will be responded to within 24 hours
Product specifications and value-engineered alternatives
Provide submittal drawings
German Partition Technology Global Professional Space Solutions
Highly competitive prices
Good quality control
Smooth communication
State-of-the-art technology products

Roller Options & Features

Dupont POM roller
304 stainless steel heavy duty roller with safety device & CNC machining
Unique and patented wheel surface and shape make the whole movable partition easy to use

Panel Options & Features

Thickness: 68mm & 89mm & 105mm
Wide variety of acoustical and decorative finishes available
6061-T6 profile and inside Q235 steel frame for superior durability
Top & bottom jack lifting mechanism seal are with power of 800N
Magnetic seal in concave & convex profile has magnetic attraction of 40N/m

Specifications

Series	Element thickness	Element width* (min./max.)	Clear height* (min./max.)	Framed construction	Panel fixing	Element interconnection/design of the vertical profiles
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.

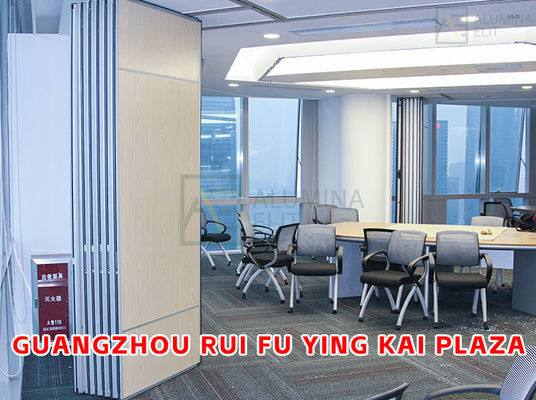

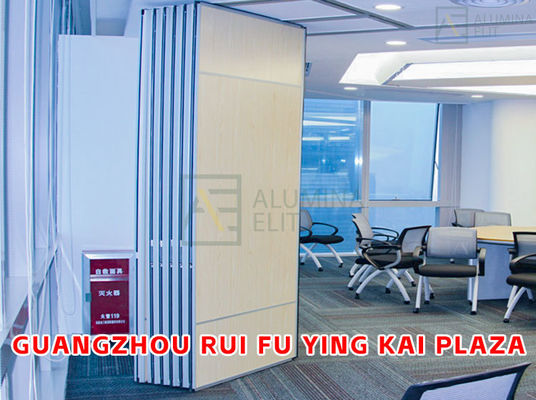

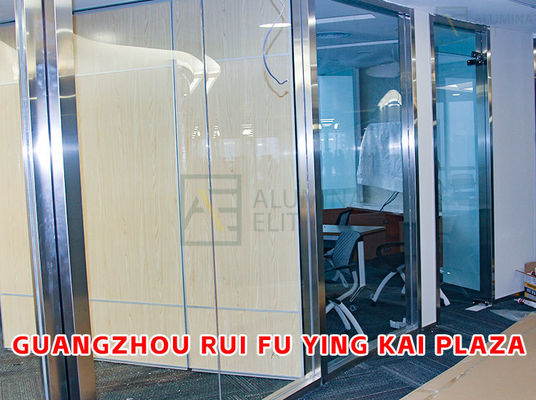

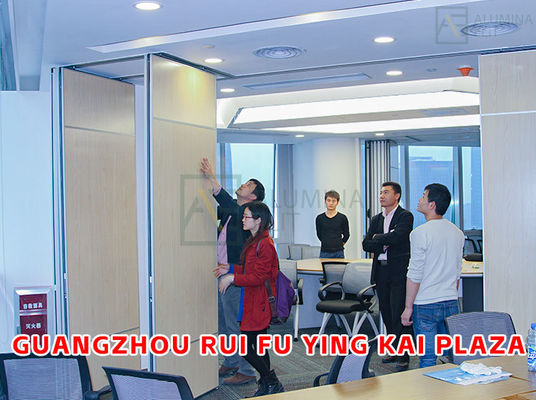

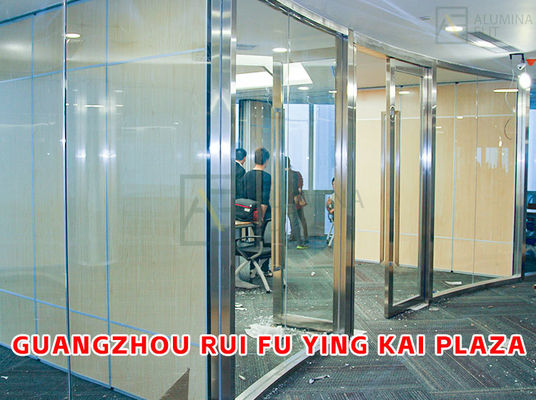

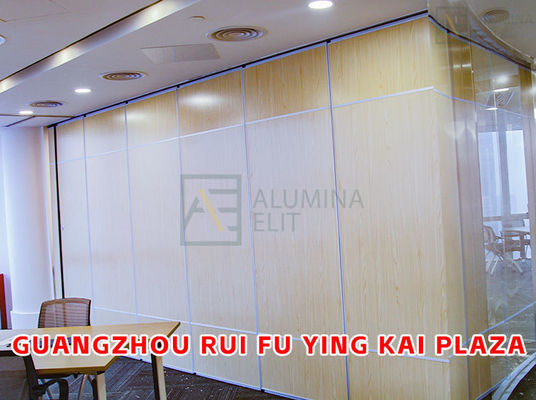

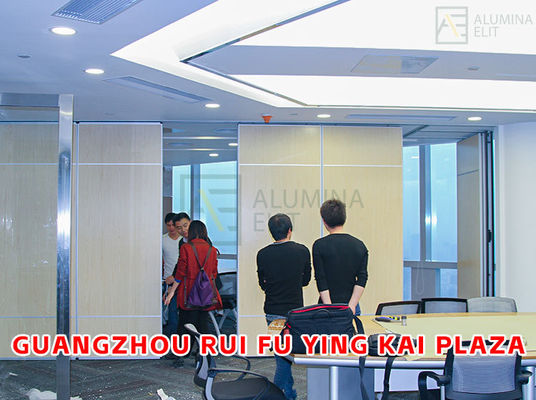

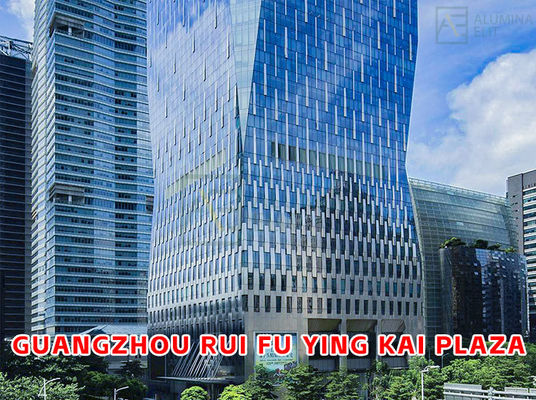

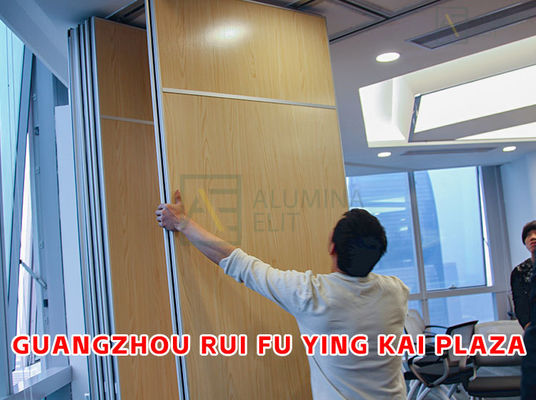

Project Examples
