Sliding Partition Wall Accordion Walls Room Divider

Sliding Partition Wall Accordion Walls Room Divider

Nombre De La Marca:	AE
Número De Modelo:	AE100
Cuota De Producción:	10 metros cuadrados
Precio:	USD90-135Per Square Meter
Condiciones De Pago:	LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad De Suministro:	1000 metros cuadrados por mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Cantón, China

Certificación:

ISO9001 SGS

Modelo:

Paredes divisorias de la exposición

Aplicación:

Salón de banquetes, sala de conferencias

Material:

MDF, marco de aluminio, tejido

Dimensiones:

Personalización (Alta: hasta 18M, ancho por panel: hasta 1.2M)

Diseño:

OEM y ODM

Aislamiento acústico:

Max 56db

Detalles de empaquetado:

capa de espuma y cartón duro con estuche de madera contrachapada o paleta de acero

Resaltar:

sliding partition wall room divider

accordion walls for exhibitions

portable exhibition partition walls

Descripción del producto

Engineered Movable Partitions with Advanced Sealing System

Our movable partition walls are built for performance and durability. Featuring a robust internal Q235 steel frame and 6061-T6 aluminum profiles, panels are available in 68mm, 89mm, and 105mm thicknesses. The core of our system is an advanced sealing mechanism, with a jack lifting system that provides 800N of sealing force and magnetic seals offering 40N/m attraction. Operation is smooth and reliable thanks to precision CNC-machined 304 stainless steel rollers and a patented wheel design. We provide full submittal drawings and value-engineered alternatives for any project.

SPECIFICATION:

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS
	Dimensions in mm*			Design
Series	Element thickness	Element width* (min./max.)	Clear height* (min./max.)	Framed construction	Panel fixing	Element interconnection/design of the vertical profiles
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56 Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m * Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department. ** Depending on the sound insulation/weight

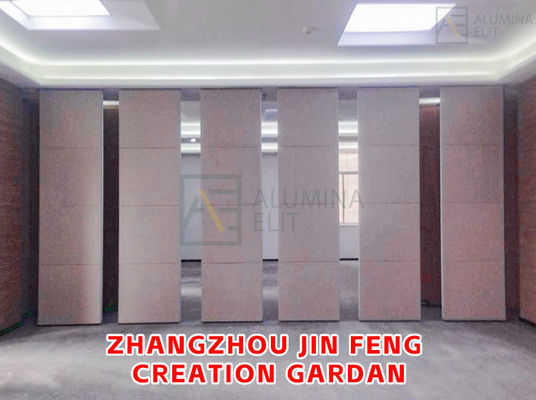

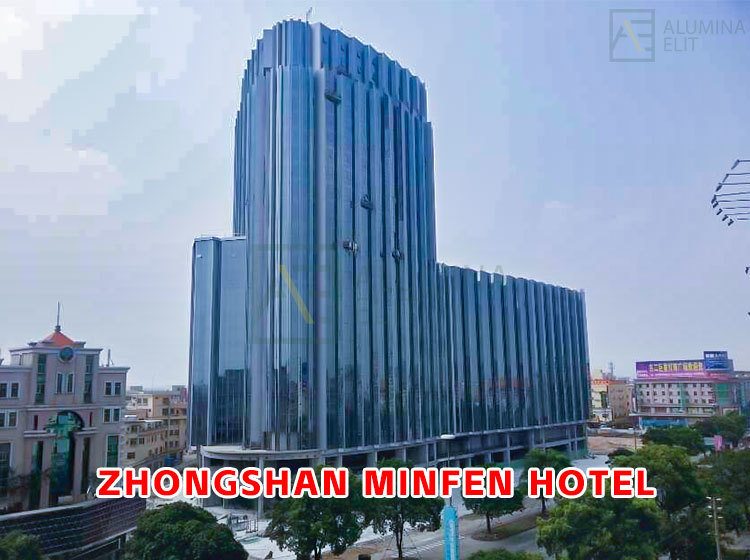

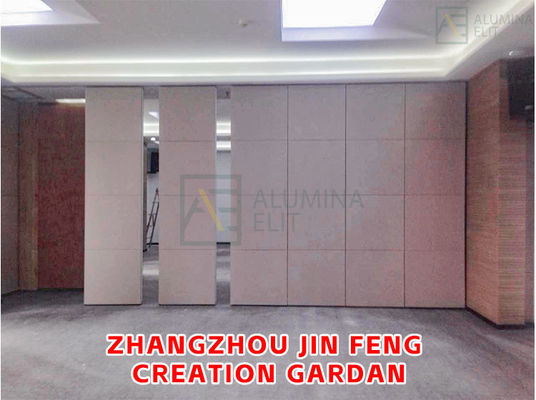

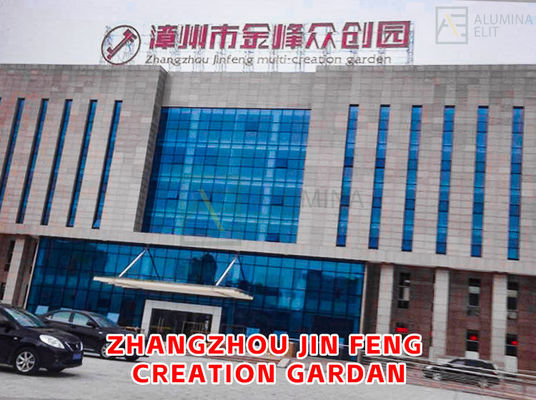

PROJECT:

Sliding Partition Wall Accordion Wall
