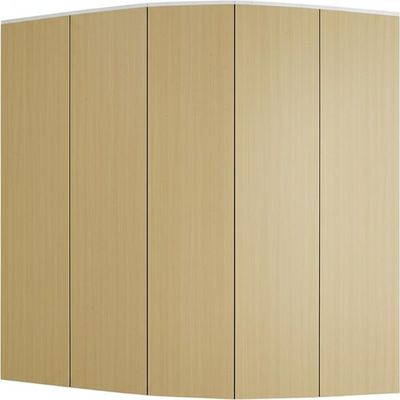

Customizable Acoustic Partition Wall with High Pressure Laminate Board and 56dB Sound Insulation for Commercial Spaces

Nombre De La Marca:	AE
Número De Modelo:	AE100
Cuota De Producción:	10 metros cuadrados
Precio:	USD90-135Per Square Meter
Condiciones De Pago:	LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad De Suministro:	1000 metros cuadrados por mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Cantón, China

Certificación:

ISO9001 SGS

Modelo:

Sistemas móviles de paredes de oficina

Aplicación:

Sala de exposiciones, sala de conferencias

Tablero base:

Tableros laminados de alta presión con tejido

Dimensiones:

Personalización (Alta: hasta 18M, ancho por panel: hasta 1.2M)

Diseño:

OEM y ODM

Aislamiento acústico:

Max 56db

Detalles de empaquetado:

capa de espuma y cartón duro con estuche de madera contrachapada o paleta de acero

Resaltar:

Customizable Acoustic Partition Wall

High Pressure Laminate Board Movable Office Wall Systems

56dB Sound Insulation Operable Partition Wall

Descripción del producto

Customized Acoustic Movable Office Wall Systems For Commercial Spaces

Customizable Acoustic Movable Partition Wall Systems for Commercial Spaces

At AE Partition, we deliver smart, efficient room management solutions worldwide. Our services extend beyond installation to include ongoing support, ensuring lasting durability and functionality for your investment in flexible space management.

Our manually operated partition systems consist of multiple panels that require no special tools - just an operating handle to engage the top and bottom mechanical seals for acoustic isolation.

Key Advantages

German Partition Technology Global Professional Space Solutions
Highly competitive pricing
Rapid response to construction-related issues
Quick quotation follow-up
Controlled delivery timelines
Comprehensive OEM & ODM customization services
Extensive experience with large-scale projects
Value-engineered product specifications
Detailed submittal drawings provided

Roller Options & Features

Dupont POM rollers
304 stainless steel heavy-duty rollers with safety devices & CNC machining
Patented wheel design for smooth operation

Panel Options & Features

Available thicknesses: 68mm, 89mm, 105mm
Multiple acoustical and decorative finish options
6061-T6 profile with Q235 steel frame construction
Top & bottom jack lifting mechanism with 800N power
Magnetic seal in concave & convex profile with 40N/m attraction

Technical Specifications

Series	Element Thickness (mm)	Element Width (min/max mm)	Clear Height (min/max mm)	Construction	Panel Fixing	Vertical Profile Design
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technical Notes: Weighted sound reduction value (Rw) per GB/T19889.3-2005: 52/56 dB. Vertical element connections feature convex-concave profile form with 40 N/m magnetic attraction. Larger widths available upon request. Final dimensions subject to Design Department confirmation.
